CERAMIC PTC THERMISTORS:GENERAL HEATING APPLICATIONS |

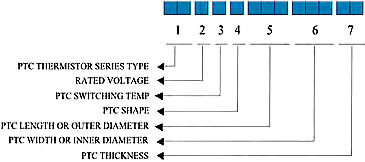

| MODEL NOMENCLATURE | |||||||||||||||||
 |
|
||||||||||||||||
| UL RATING PARAMETERS |
|
PTC
Shape |
Rated
Volt. (V) |
Max
Volt. (V) |
Min
R 25  C(  )
|
Max
Ir (A) |
Max
I SS (A) |
T
SW
( C)
|
Max
T SURF ( C)
|
|
Rectangular
|
100-240
|
240
|
100
|
10
|
3
|
30-250
|
280
|
|
Disk
|
100-240
|
240
|
100
|
10
|
3
|
30-250
|
280
|
|
Ring
|
100-240
|
240
|
100
|
10
|
3
|
30-250
|
280
|
| STANDARD THEMISTOR MODELS |
|
Model No.
|
VR
(V) |
TSURF
( C)
|
VW/S
(V/min) |
Dimension
(mm) |
|
PH6HA18006014
|
12
|
200
 5
|
50/3
|
18.0��6.0��1.4
|
|
PH8JA23014721
|
50
|
230
5
|
100/3
|
23.0��14.7��2.1
|
|
PH1NA24014721
|
120
|
240
5
|
360/3
|
24.0��14.7��2.1
|
|
PH1PA27313114
|
120
|
265
5
|
360/3
|
27.3��13.1��1.4
|
|
PH2FA05004016
|
220
|
170
5
|
480/3
|
5.0��4.0��1.6
|
|
PH2KA27810614
|
220
|
220
5
|
480/3
|
27.8��10.6��1.4
|
|
PH2MA27810614
|
2520
|
240
5
|
480/3
|
27.8��10.6��1.4
|
|
PH2PA24014721
|
220
|
265
5
|
480/3
|
24.0��14.7��2.1
|
|
PH4NA24014725
|
440
|
260
5
|
600/3
|
24.0��14.7��2.5
|
|
|
|
|
|
|
|
PH5AB07600025
|
6
|
130
5
|
24/3
|
 7.6��2.5
|
|
PH7IB07000018
|
24
|
230
5
|
50/3
|
7.0��1.8
|
|
PH19B08000018
|
120
|
110
5
|
360/3
|
8.0��1.8
|
|
PH27B08000018
|
220
|
105
5
|
480/3
|
8.0��1.8
|
|
PH2BB08000030
|
220
|
135
5
|
480/3
|
8.0��3.0
|
|
PH2IB08000025
|
220
|
200
5
|
480/3
|
8.0��2.5
|
|
PH2KB08000018
|
220
|
225
5
|
480/3
|
�X8.0��1.8
|
|
|
|
|
|
|
|
PH2FC22013532
|
220
|
165
5
|
480/3
|
�XO22x�Xi13.5��3.2
|
| Available PTC dimensions (mm) | ||
|
Rectangular
|
Disk
|
Ring
|
|
24.0��14.7��t
|
5.0��t
|
14.5�ѣX4.3��t
|
|
23.0��14.7��t
|
6.0��t
|
22.0�ѣX13.4��t
|
|
28.0��10.6��t
|
7.0��t
|
|
|
28.0��13.4��t
|
8.0��t
|
|
|
23.0��13.0��t
|
9.4��t
|
|
|
34.5��6.2��t
|
10.0��t
|
|
|
16.5��14.0��t
|
12.0��t
|
|
|
4.9��3.9��t
|
13.4��t
|
|
|
|
22.0��t
|
|
|
UL Approved: Thickness "t"=1.5-3.0mm Low Voltage (6 to 50V): Thickness 1.5>t>0.8mm When placing an order, please provide specification parameters as indicated in the standard model list. Note 1:The table provides standard PTC thermistors currently in production. Note 2:For thermistors of non-standard dimensions, please send specific inquiries to our sales department. Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-standard unit quotations are usually provided after the fabrication of the prototype. |
|
|
|
|
