PTC SURFACE HEATING ELEMENTS


UL APPROVED HE SERIES HEATING ELEMENTS
UL APPROVED HS SERIES HEATING ELEMENTS


STANDARD MODELS
Model No.
VR
(V)
2TSURF
C
HIPOT
Rating
Cross-section
Shape
Dimension
(mm)
HE618B2A1
12
806C
500V/5mA/1sec
23¡Ñ13¡Ñ2.2
HE61BA2A1
12
1056C
1000V/5mA/1sec
24¡Ñ14.7¡Ñ3.5

HS21L1A01
220
2106C
2500V/5mA/1sec
65¡Ñ18.8¡Ñ5.1
HS22K1A01
220
2006C
2500V/5mA/1sec
65¡Ñ18.8¡Ñ5.1
HS12L1A01
110
2006C
2500V/5mA/1sec
65¡Ñ18.8¡Ñ5.1
HS11M1A01
110
2156C
2500V/5mA/1sec
65¡Ñ18.8¡Ñ5.1
HS02G2B01
220
1606C
3750V/5mA/1sec
15.7¡Ñ80
HS11E1A01
120
1356C
3750V/5mA/1sec
35¡Ñ35¡Ñ7.7
HS21N1A01
230
2356C
3750V/5mA/1sec
40¡Ñ18.8¡Ñ5.05
HS11C1A01
120
1156C
3750V/5mA/1sec
35¡Ñ35¡Ñ7.7
HS22N1A01
220
2356C
3750V/5mA/1sec
50¡Ñ30¡Ñ6.2
HS02KA01
220
1956C
2500V/5mA/1sec
50¡Ñ30¡Ñ5.8
HS22J1A01
230
1856C
3750V/5mA/1sec
40¡Ñ30¡Ñ6.3
HS21J1A01
220
1856C
2500V/5mA/1sec
38¡Ñ18.8¡Ñ5.45
HS22G2C01
220
2356C
3750V/5mA/1sec
15.7¡Ñ80

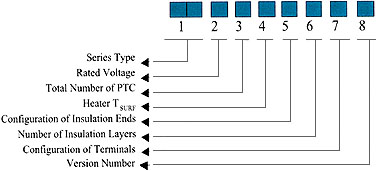

HE22KB3A1
HE:
HS Series
2:
VR-220-240V
2:
2 PTC stones total
K:
TSURF=200¢J/220
B:
closed at one end
3:
3 insulation layers
A:
Same side
I:
KAPTON used

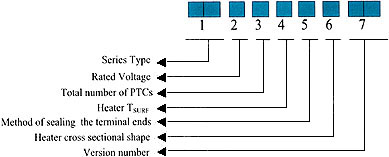

HS02K2A01
HS:
HS Series
0:
VR=100-240V
2:
2 PTC stones total
K:
TSURF=200¢J/220
2:
Moisture resistant
A:
Rectangular
01:
PPS plugs used



When placing an order, please provide specification parameters as indicated in the above table.

Note 1:The table provides standard heating elements available for production.

Note 2:For element of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-standard unit quotation are usually provided after the fabrication of the prototype.
