HF SERIES PTC FAN HEATING ELEMENTS



Specifically designed for auto-regulated air heating applications with
the use of independent control system. Can be used in air heating
applications such as space heaters, clother dryers, dish dryers,
hand dryers, de-humidifiers, ets.
Specific rating and size available upon request
German Patent; TUV, CSA, UL certified
RATED VOLTAGE:
12-600V
POWER@25C ,3.3m/s airflow
100-8000W
MAX SURFACE TEMP.
235C
MAX CURRENT PER TERMINAL
0.5-20A

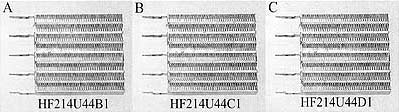

A:Standard Configuration
B:Plastic framing around PTC row
C:Silicon framing around PTC row
L1:
24-350mm
L2:
50-376mm
W1:
21.5-23.0mm
W2:
21.5-276mm
T:
10-15mm



Patented electrically isolating design provides enhanced moisture and dust protection on PTC heating core.
Designed for air heating applications where environmental factors are of a concern and electrical insulation is a must.

Specific rating and sizes are available upon request

World wide patent; UL certified
